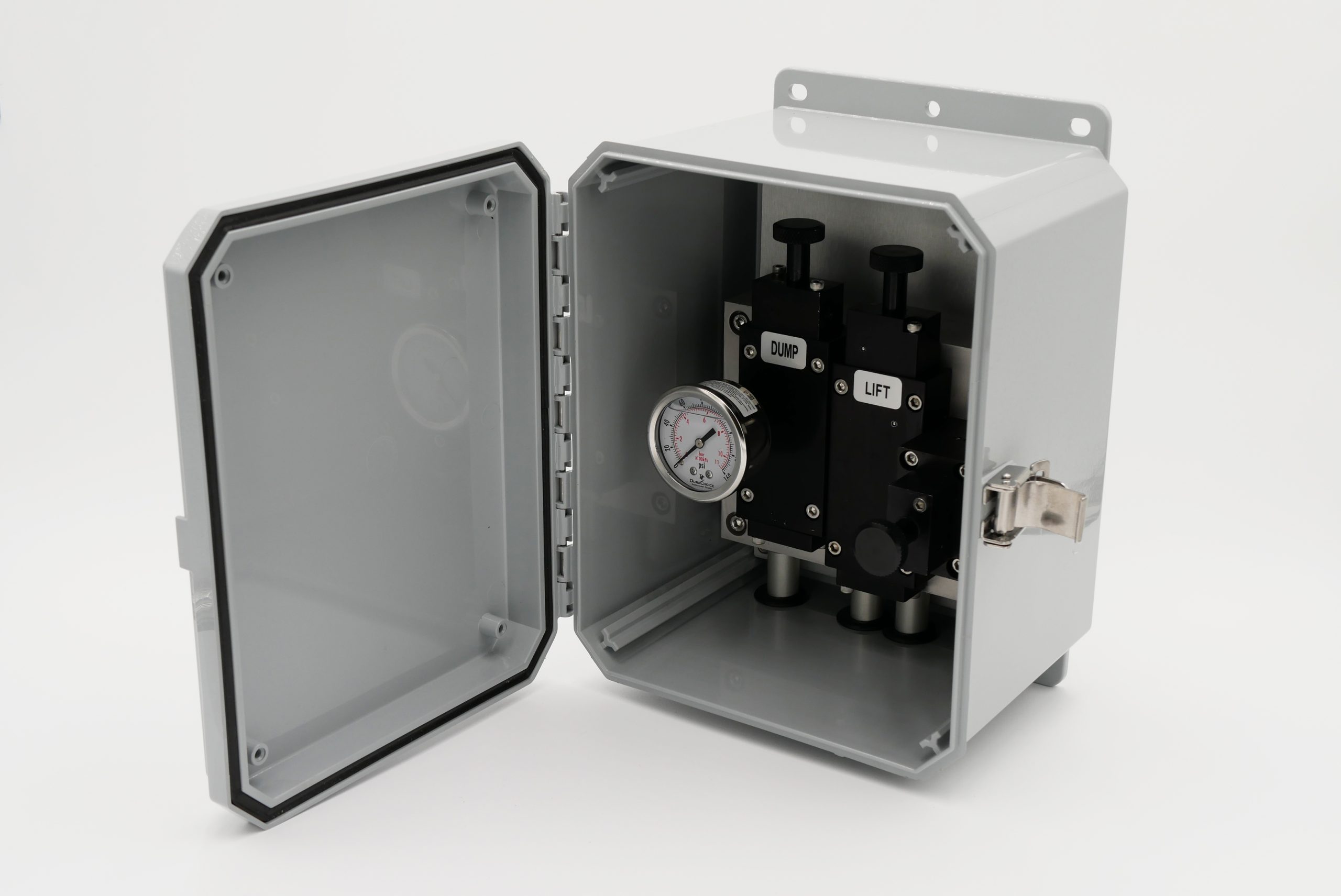

Alkon AirBOSS® Control Box
The Alkon AirBOSS® Control Box brings key pneumatic functions together in one pre-assembled, factory-tested unit. By consolidating valves, fittings, plumbing, and controls, it reduces the amount of work required on the production line while giving OEMs a cleaner, more consistent approach to trailer pneumatics.
Built for Faster, More Reliable Trailer Production
Save Installation Time
Replace hours of component-by-component assembly with a ready-to-install unit. In one customer application, pneumatic installation time dropped from approximately six hours to 45 minutes.
Simplify the Build
Pre-drilled mounting points, centralized connections, and color-coded plumbing reduce added fabrication and give technicians a clear, consistent layout to follow.
Tested Before It Reaches You
Individual components are tested before assembly, and the completed control box is tested again to verify proper operation and consistent performance before shipment.
Reinforce the Quality Behind Your Brand
A more consistent pneumatic assembly helps reduce avoidable field issues and supports the reliability your customers expect from your trailers.
Configured Around Your Application
Trailer requirements vary. The AirBOSS® Control Box can be configured around your trailer’s functions and operating needs while maintaining the benefits of an integrated assembly.

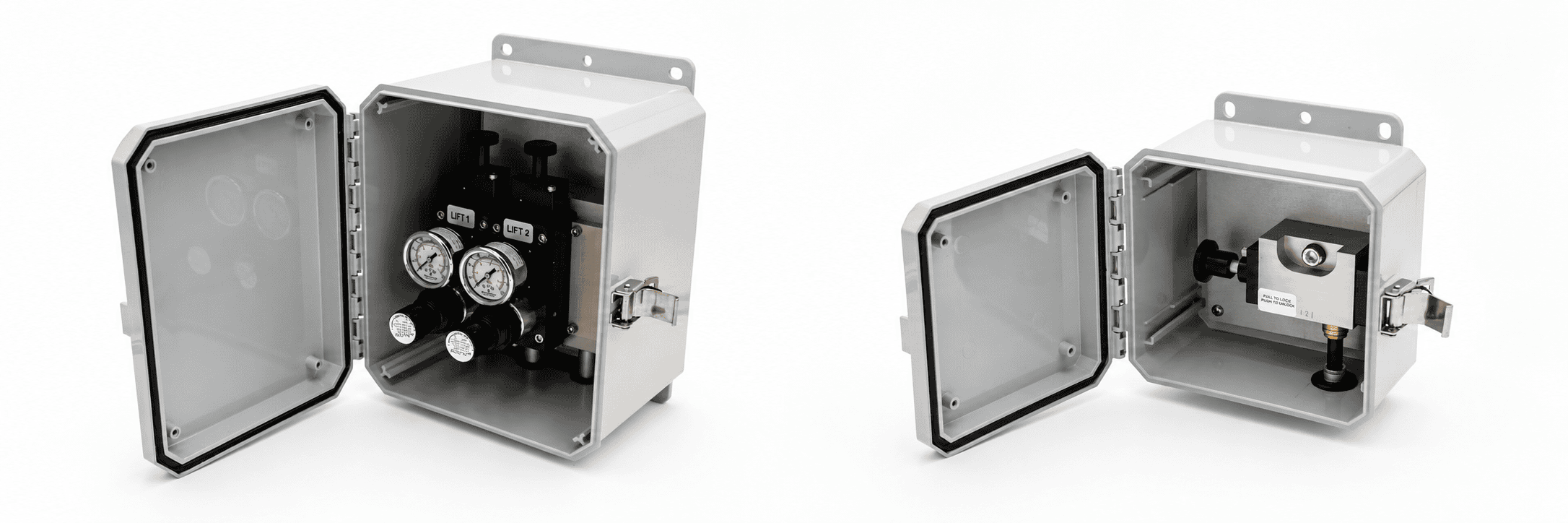

Flexible Control Options
Multiple valve functions, actuation methods, suspension types, and valve formats support a range of trailer requirements.

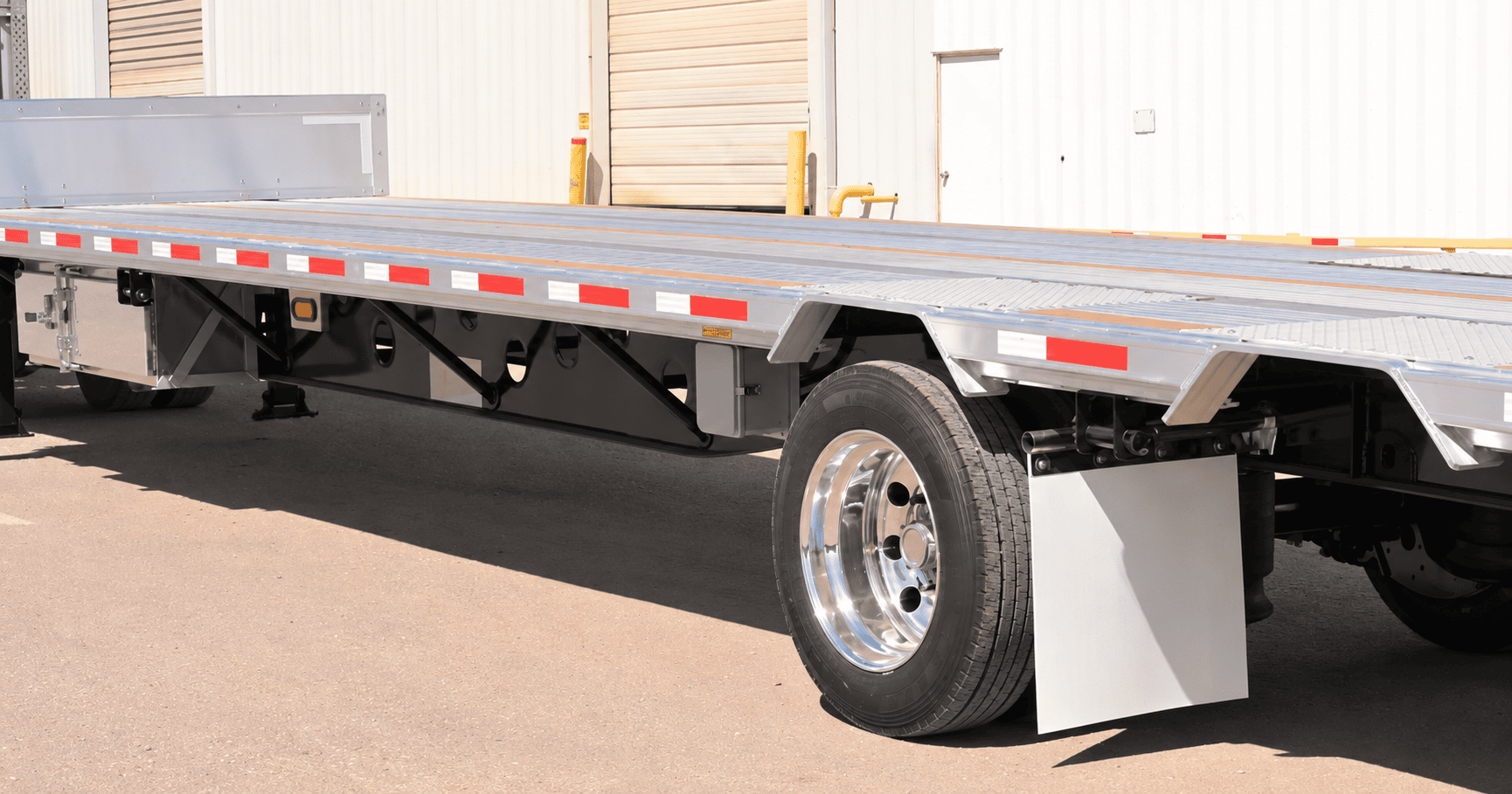

Enclosure Options
Composite and stainless-steel enclosures provide choices for different operating environments and build needs.

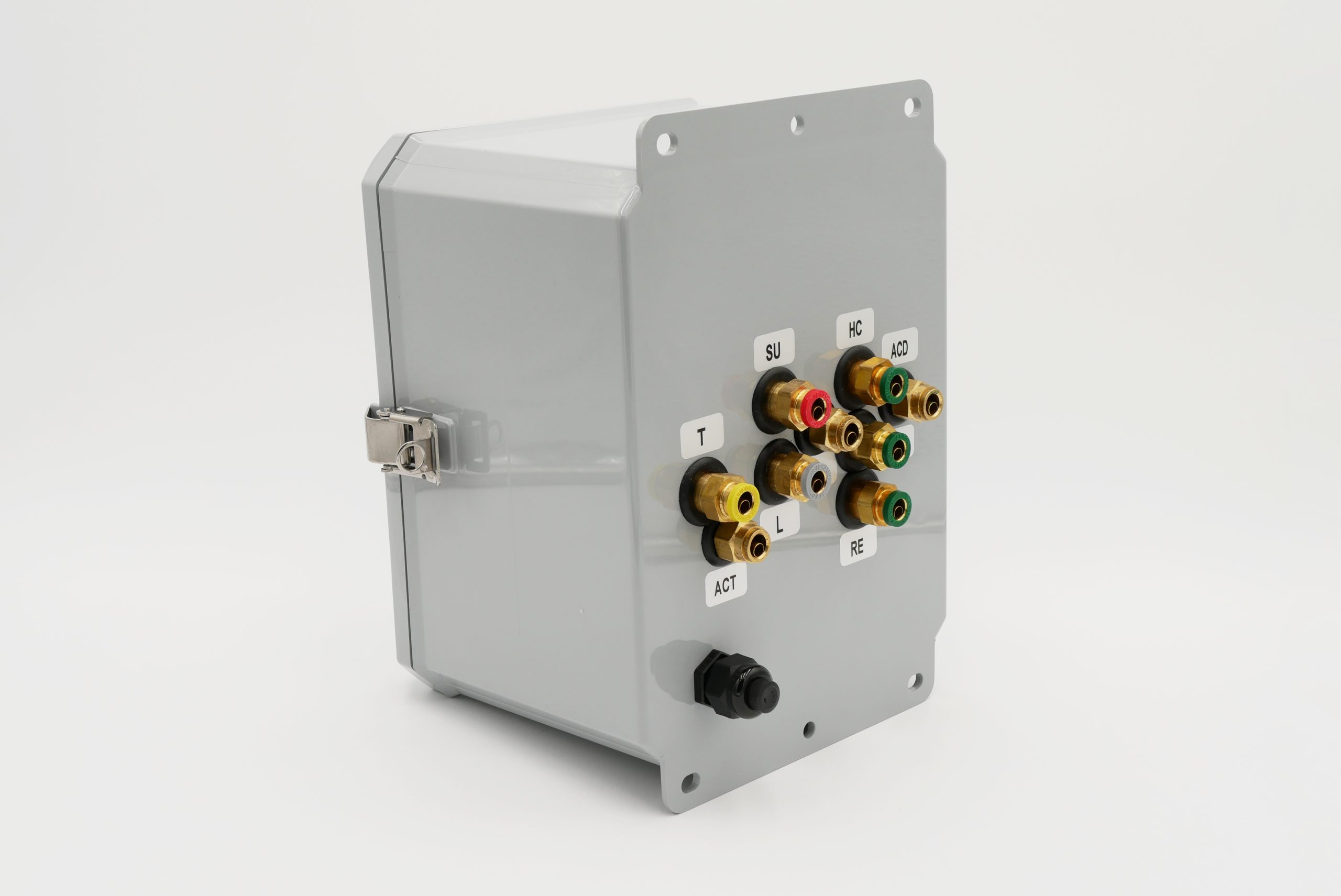

Color-Coded Plumbing
Clearly identified connections help technicians make the correct hookups and simplify troubleshooting during service.
Design Specifications
| Specification | Details |
|---|---|
| Operating Temperature | -40°F to +180°F |
| Operating Pressure* | 0 to 150 PSI |
| DOT Fitting Size | 3/8″ Tube |
| Gauge Range | 0 to 160 PSI |
*Minimum of 60 PSI tank pressure required.
Dimensional Information

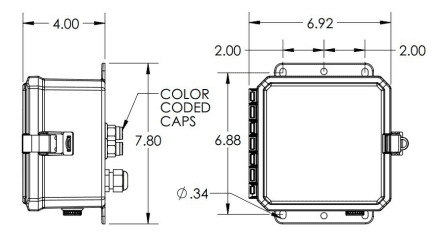

Single-Valve Box

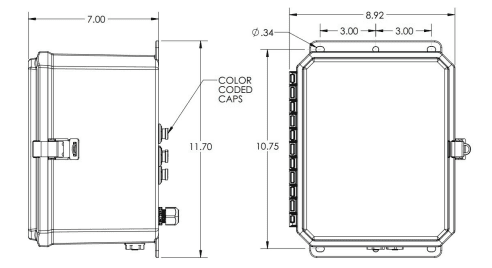

Multi-Valve Box
Additional Resources

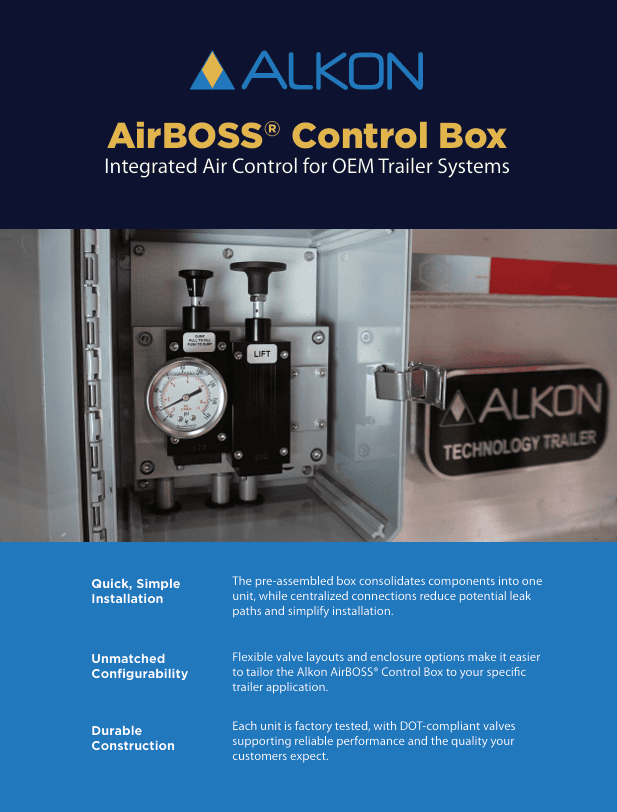

AirBOSS® Control Box Sell Sheet
Review product specifications, configuration options, and part-number information.
Download PDF
AirBOSS® Control Box Video
See how the integrated assembly helps simplify trailer pneumatic installation.
Watch Video

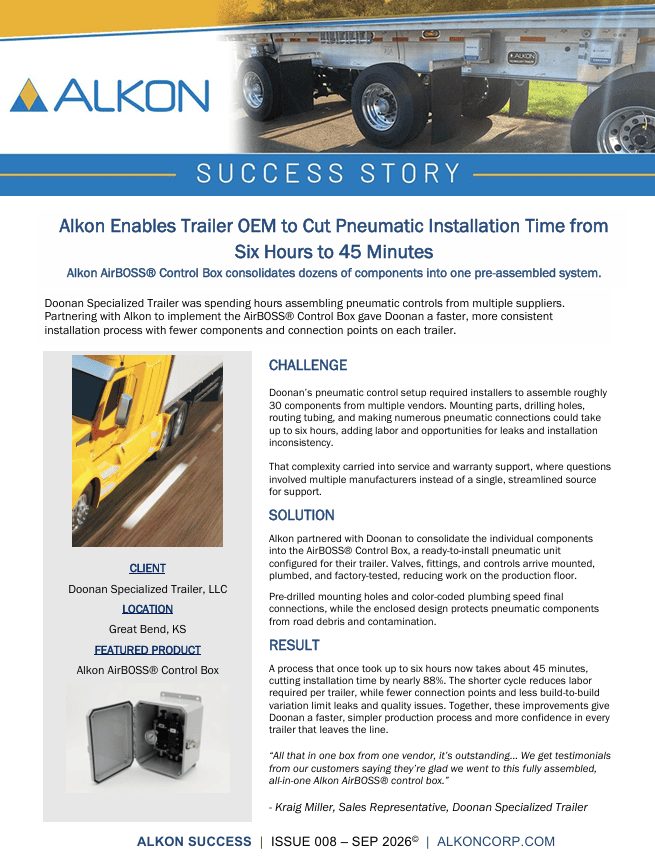

Doonan Specialized Trailer Success Story
See how Doonan reduced pneumatic installation time from approximately six hours to 45 minutes.
Read the StoryFrequently Asked Questions
What is the Alkon AirBOSS® Control Box?
The Alkon AirBOSS® Control Box is a pre-assembled pneumatic control system for trailer applications. It combines valves, fittings, plumbing, and controls into one protected unit to simplify installation and reduce production complexity.
How much installation time can the AirBOSS® Control Box save?
Installation time varies by application, but the AirBOSS® Control Box is designed to replace component-by-component assembly with a ready-to-install unit. In one customer application, pneumatic installation time was reduced from approximately six hours to 45 minutes.
What makes the Alkon AirBOSS® Control Box easier to install?
Pre-drilled mounting points, centralized connections, and color-coded plumbing make installation more straightforward. The pre-assembled design also reduces fabrication and component handling on the production line.
Can the Alkon AirBOSS® Control Box be configured for different trailer applications?
Yes. The AirBOSS® Control Box can support different valve functions, actuation methods, suspension types, valve formats, enclosure materials, and plumbing requirements. Detailed configuration and part-number information is available in the AirBOSS® Control Box Sell Sheet.
Is the Alkon AirBOSS® Control Box tested before shipment?
Yes. Each AirBOSS® Control Box goes through a two-step testing process. Individual components are tested before assembly, then the completed unit is tested again to verify proper operation and consistent performance before shipment.
Can the Alkon AirBOSS® Control Box be serviced in the field?
Yes. The centralized layout keeps controls accessible for troubleshooting and allows individual valves to be replaced without replacing the entire assembly.
How does the Alkon AirBOSS® Control Box simplify purchasing and inventory?
The AirBOSS® Control Box can be managed under a single SKU instead of sourcing and tracking numerous individual pneumatic components. This simplifies ordering, inventory management, and ongoing support.
What makes the Alkon AirBOSS® Control Box a reliable pneumatic solution?
The control box brings together DOT-compliant Alkon valves and Alkon DuraLink™ brass push-to-connect fittings to support dependable mobile performance.
