Product Configuration
- Product Shape: 45° Male Elbow
- Tube Size 1: 1/4″
- Thread Size 1: 1/8″
- Weight, lb.: 0.039
- Fixed / Swivel: Fixed

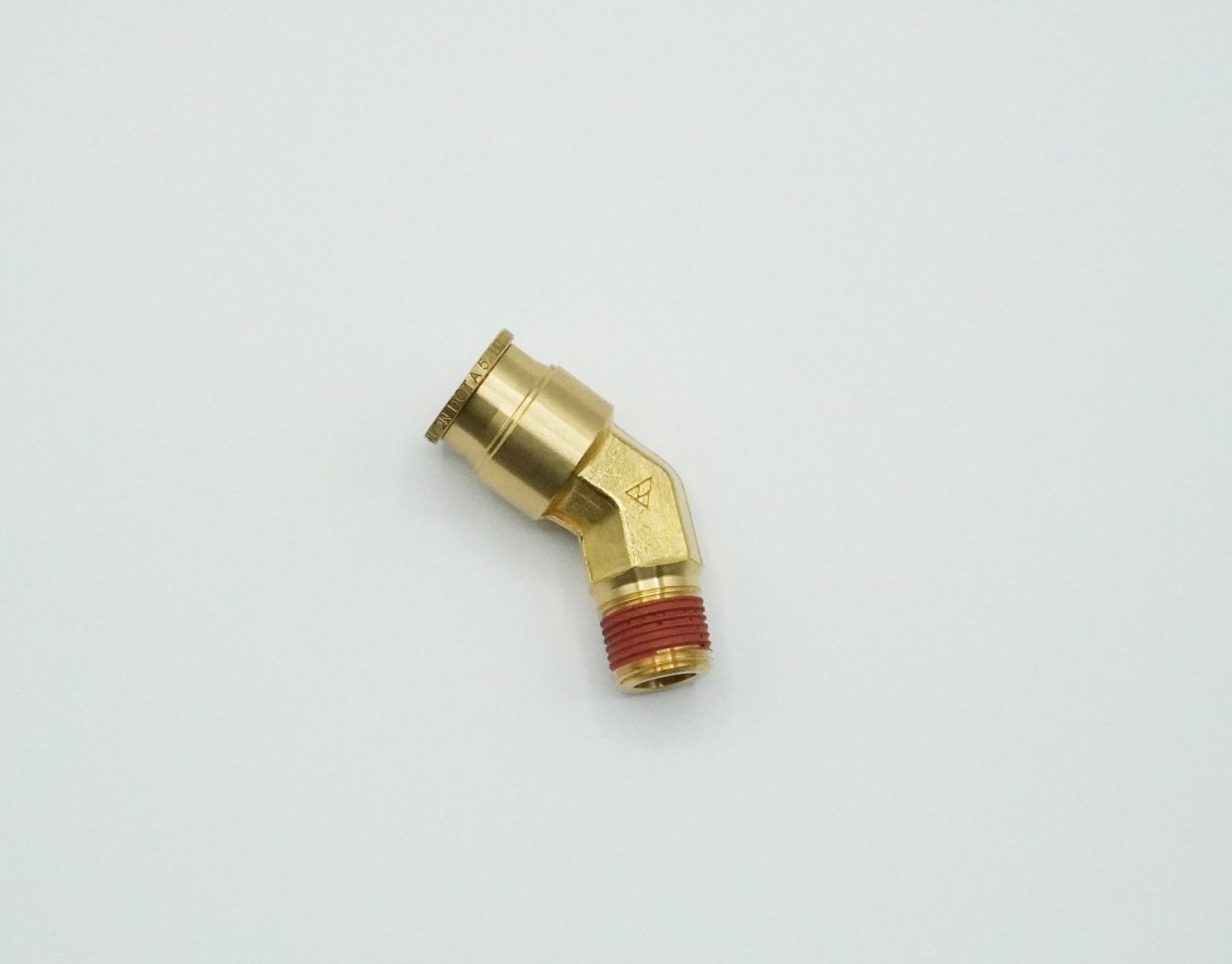

45° Male Elbow, 1/4″ Tube X 1/8″ NPT
Brass Push-to-Connect
Alkon Brass Push-to-Connect air brake fittings are engineered and rigorously tested to meet and exceed industry standards, including SAE J2494-3 and FMVSS 49 CFR 571.106. Built for reliable, leak-free performance, they give fleets confidence that critical pneumatic systems are safe, compliant, and dependable.
Cross-References: 1880X4, 179PTCNS-4-2, S254PMTNS-4-2, 95460004M
Cross-reference information is provided as a guide only. Please verify all specifications to ensure proper fit and performance for your application.
Recommended Tubing: SAE J844 Tubing, Alkon DuraLink™ Tubing
IN STOCK
Design Specifications
- Pressure Range: 150 PSI Maximum
- Temperature Range: -40°F to 220°F
- Body Material: Brass – CA360 & CA377
- O-Ring Material: NBR
- Thread Sealant Type: LOCTITE® 516
System Advantages
- Easy Release: Deep gripping teeth prevent accidental detachment during operation, yet release effortlessly for hassle-free maintenance.
- Leak Free: Squeeze between the seal and tubing surface prevents leaks during operation, reducing rework, troubleshooting, and downtime.
- Tight Bend Radius: Floating support enables sharper routing angles, reducing installation time and lowering labor costs.
- Bias Cut: Supports angled cuts beyond standard limits, enabling faster tube cutting and minimizing errors that could cause leaks.
- Full System Compatibility: Complete your full system design with Alkon products for trusted, reliable performance.
